3-Axis Stepper Motor Driver Controller Board

Features:

1. it can drive three axis,The 4th axis expansion, to facilitate your needs 4-axis machining when working

2. Spindle relay output, easy to use software such as mach3 to control spindle start and stop.

3. Semi-flow control functions, and effective to stop the motor when the current is reduced to a minimum.

4. Interface with a fan, you can add fan under your choice.

5. With 3 wire 0.8-3.5A (peak) rated output of two-phase adjustable-current bipolar stepper motor drive;

6.  Standard parallel port interface, support for MACH2, KCAM4 series software;

7.  With optical isolation and DCDC power supply isolation, the full protection of your computer parallel port and equipment;

8.  with limit switch,can connection 4 aixs limit switch

9.  Support four micro stepping  1, 1/2, 1/8 ,1/16;

10. 12-36V single switching power supply,microchips to use as a 5V power supply, stable and heat small

11. Using RC + 7414 automatic semi-flow,the current automatic reduce when stepper motor stop to down the heat

Package list:

1 * 3 axis TB6560 Stepper Motor Driver board

1 * DB25 parallel cable

3 * Link Terminal

CNC 4 Axis TB6560 Stepper Motor Driver Board Controller & DB25 Parallel Cable

CNC stepper motor driver board 96560A V1 adopts the new chip TB6560AHQ of TOSHIBA, the max ouput current can reach to 3.5A , this driver board can drive the 2-phase or 4-phase stepper motor whose current is less than 3A.

The advantages of the TB6560AHQ chip:

• The vibration of the motor is small and low noise: because of the 2/8/16 resolution can satisfy the different speed.
• Flush type low heat: The area of the chip can support itself to cool when the current is low
• Supports a lot of stepper motors
• The advantages in the high-speed running condition
• board might be made partly out of recycled parts, because of the environmental protection

Features:

• 4-wire 0-3.5A (normally 3A , the 3.5A is the peak current)can be regulated rate current output, bipolar stepper motor driver
• Standard parallel port , supports Mach 2, KCAM 4 etc.
• Optical isolated (IO) and DCDC power isolated to protect the PC parallel port and other equipments
• Limit and emergency stop port ( standard DB9 port)
• 4 working modes: mixed mode , fast mode, slow mode, standard mode
• 4-resolution : 1 1/2 1/4 1/16
• 12-36V single power input uses the switch power chip as the 5V power supply, stable and low heat
• Adopts RC + 7414 auto semi-flow
• The relay output can control the main axis
• 5th axis extension control port

Package list:

1 * 4 Axis CNC TB6560 Stepper Motor Driver Board

1 * DB25 Parallel Male - Female Cable

4 * Connect Terminal

CNC USB SmoothStepper for Mach3 Smooth Stepper Motion Control

The Smooth Stepper is a motion control device that connects to the USB port of a computer. It accepts commands from CNC software Mach3, and produces very high quality pulse trains that drive step & direction motors. Eliminates the need for a computer with a parallel port! Generates pulses at rates of up to 4Mhz, and has 34 I/O ports. Connects directly with our unipolar CNC Controller, using a 26 pin ribbon cable and USB cable.

The SmoothStepper is a 6 axis motion control device that connects to the USB port of a computer. It accepts commands from a trajectory planner (i.e. Mach3) and produces a very high quality pulse train to stepper and servo motors. At this time the Smooth Stepper only works with Mach3, but a Software Development Kit (SDK) is planned, which will allow developers to integrate the Smooth Stepper with other motion planning software.

When used with Mach3, the SmoothStepper can act as a replacement for two printer ports, both in terms of function and connections.  It can be viewed as a super printer port. If your system is currently using Mach3 with one or two printer ports, changing to the Smooth Stepper should be very easy. The Smooth Stepper allows computers with no printer ports, such as laptops, to control motion with Mach3.

3-Axis Unipolar CNC Stepper Motor Driver /  Controller

Our custom designed 3-Axis Unipolar CNC Controller will get your machine moving quickly and effeciently. One of the easiest CNC controllers to build and operate. You must solder the board and the components. Solder the components to the board and then simply connect this board to your power supply, a computer (via parallel port), and add your stepper motors... and you are ready to go!

Specifications

• Accepts 5, 6 or 8 wire unipolar stepper motors (4 wire bipolar type not compatible)
• 40 volt DC maximum input voltage, 24 volt DC recommended, 12 volt DC minimum.
• 3.0 amps maximum current per phase, 0.5 amp minimum. (Fully adjustable)
• 12 volt DC output for computer style case fan (not included).
• 1/1, 1/2, 1/4, 1/8, & 1/16 microstepping.
• Patent pending circuit protection built in to protect against short circuits.
• Inputs for limit switches and e-stop.
• Easy to build and easy to use terminal blocks for connecting wire

16 Channels Servo motor USB UART Controller driver board for ROBOTIC ARM

Description

Can control up to 16 servo motor coordination action, has the position control

and speed control, not only can use PC software to control, but also can use

MCU (51, AVR, ARM, PIC) UART communication (TTL serial) to send commands

to control servo motor, and also can download to the instructions (code got

from the PC software) to the servo motor controller, realize offline operation.

Feature

1. Controlling chip power supply range: 6.5V~12V or 4.5 V~5.5 V.

2. Servos power supply range: DC (voltage depends on the parameters of the servos, commonly 5V DC).

3. Control channels: can control 16channels at the same time,speed is precisely   adjustable.

4. Communications input: USB or serial port (TTL, UART). (can use wireless bluetooth module or other wireless module to wireless control)

5. Signal output: PWM (accuracy of 1us).

6. Servo motor driver resolution: 1us, 0.09 degrees.

7. Baud rate range: 9600 19200 38400 57600 115200 128000. (fully automatic identification, no need setting)

8. Support of servo motors: Futaba, Hitec or others.

9. PCB size: 51 mm x 43.5 mm x 1.6 mm (installation hole spacing: 42 * 35.5 mm).

10. Control mode: USB and serial interface (TTL) accept command mode.

11. Flash: on-board 512 K ROM.

Item include

1.  16 Channels Servo motor Controller × 1

2.  USB cable × 1

3.  software and manual

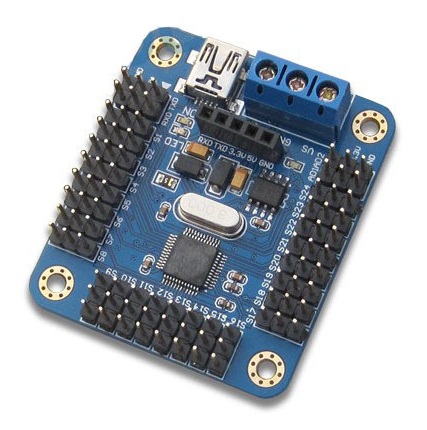

32 Channels Servo motor USB UART Controller driver board

Description

Can control up to 32 servo motor coordination action, has the position control and speed control, not only
can use PC software to control,but also can use MCU (51, AVR, ARM, FPGA, PIC) UART communication (TTL
serial) to send commands to control servo motor, and also can download to the instructions(code got from
the PC software) to the servo motor controller, realize offline operation.

Feature

1.  Controlling chip power supply range: 6.5V~12V or 4.5 V~5.5 V.

2.  Servos power supply range: DC (voltage depends on the parameters of the   servos, commonly 5V DC).

3.  Control channels: can control 32channels at the same time,speed is precisely   adjustable.

4.  Communications input: USB or serial port (TTL, USART). (can use wireless bluetooth module or other wireless module to wireless control)

5.  Signal output: PWM (accuracy of 1us).

6.  Servo motor driver resolution: 1us, 0.09 degrees.

7.  Baud rate range: 9600 19200 38400 57600 115200 128000. (fully     automatic identification, no need setting)

8.  Support of servo motors: Futaba, Hitec or others.

9.  PCB size: 63.5 mm x 43.5 mm x 1.6 mm (installation hole spacing: 55 *  35.5 mm).

10. Control mode: USB and serial interface (TTL) accept command mode. (come with USB cable and software)

11. Flash: on-board 512 K ROM.

Item include

1.     32 Channels Servo motor Controller × 1

2.     USB cable × 1

3.     software
